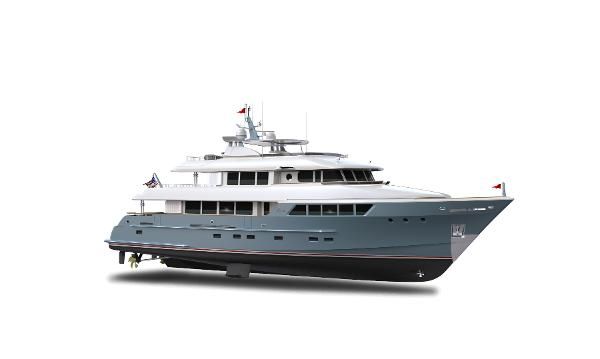

2024 Outer Reef Yachts 108 Explorer
All Outer Reef Yachts are ruggedly built to withstand the fury of Mother Nature. Built to Ocean, category A Standards, "Unrestricted Navigation," for stability and safety, you can rest assured your Outer Reef will get you to your destination in safety and comfort. Also, our shipyard is IOS 9001 (international Organization for Standardization) certified, which guarantees the highest quality design and control measures.
All Outer Reef Yachts are constructed of hand laid fiberglass, with Vacuum bag infusion, to guarantee consistent fiberglass to resin ratios. By using the latest technologies in computer-aided design, the Outer Reef team is able to construct all models from only four major molds. Minimizing the number of components increases the structural integrity of the hull, guarantees a quiet ride, and eliminates the possibility of water intrusion.
Basic Boat Info
Dimensions
Engines / Speed
- Make: Caterpillar
- Model: C-32 Acert
- Fuel: Diesel
- Engine Power: 775hp
- Make: Caterpillar
- Model: C-32 Acert
- Fuel: Diesel
- Engine Power: 775hp
Tanks
Hull and Superstructure Construction
- Vacuumed bag infused
- Gel-coated parts
- Foam cored & solid glass parts
- Multi-axial fabric reinforced skins
- Vinyl-ester resins
- Carbon reinforcements incorporated into deck and structure where applicable
- House & decks stiffened with longitudinal stringers supported by transverse bulkheads, web-frames and floors
- Separate hull bottom tanks
- Vessel to be built to full survey and compliance, with RINA rules with MCA additional compliance
Painting and Faring
- All surfaces above waterline shall be faired smooth with micro-balloon filled epoxy compounds as needed
- All surfaces must be degreased and cleaned free of all corrosion products, sand, dirt, rust, oil and foreign matter
- Hull bottom approx. 30 mils. bottom coat system, two (2) coats of primer, two (2) coats of barrier & anti-fouling paint
- Topsides primed with two (2) coats of epoxy primer and top coated with two (2) coats of a polyurethane paint system
- Any decks that are not teak will be sprayed w/ a non-skid finish
Metal Construction
- Welded construction in aluminum to MIG and TIG survey standards
- Plating shall be 5086 H116 aluminum
- Stiffeners shall be 5086 H111 or suitable marine grade equivalent
LAZARETTE / CONTROL ROOM
- Multiple workbenches w/ storage below & above as allowable
- Electric panels
- Bench stainless steel sink
- Misc. gear storage lockers outbd.
- Amtico Vinyl product flooring
- Perforated aluminum panels or Formica plywood wall covering
- Perforated aluminum or Sintra board overhead panels
- Fluorescent, overhead & task lighting at workbenches
- Stainless steel sink & Kohler faucet
- Snap On or equal bench vise and tool chest
- One (1) fire extinguisher
- Trash receptacle
- Watertight door to Sport Deck
- Full size ref/freezer
ENGINE ROOM
- Twin CAT 12 cylinder in line, C32 C, Diesel Engines 1300 bhp / 970bkw @ 1800rpm
- Four separate fuel filters (4) with water alarms (2) SWK 200 on engines (2) for generators
- Multiple fuel tanks with electric sender units and sight gauges where possible mercury type
- Manual bilge pump with changeover valve to pump fore and aft
- Bilge pumps (24V automatic), Engine Room = one (1) flood pump 600L / hr and one (1) 1750 L / hr
- Amidships = one (1) flood pump 6000 L hr and one (1) 1750 L hr pump andforward in thruster compartment = one (1) 1750 L hr
- Bilge water alarm forward and aft
- Electric 24V scavenger bilge pump in engine room
- Sound insulation throughout engine room
- Freshwater engine top up hose and spigot
- 24V emergency alert alarm red light
- Automatic fire extinguisher system w/ engine/generator and fan shut down
- 24V hydraulic pump for passerelle
- Engine gear driven hydraulic pump for bow thrusters and anchor windlass
UNDERWATER GEAR
- Direct drive through tunnels
- Two (2) Michigan Wheel (NiBrAl) medium skewed five-blade propellers
- P-brackets
- Two (2) Seatorque enclosed drive shaft systems
- High performance stainless steel balanced spade foil section rudders
- 100 hp Trac or equal bow thruster 20" hydraulic
- Seawater strainers two (2) main engines/Two (2) generators
- Seacocks on all underwater fittings
- Full cathodic bonding system to zinc anodes
- Hydraulic stabilizers with "At-Rest" by Trac or equal sized to vessel displacement
- Seawater piping in CuNi and/or per class approvals
ELECTRICAL SYSTEM
- Glendinning cable masters, two (2) 100amp, 3-phase, 60hz dockside connection, 75ft leads with remotes
- 100 KVA shore power converter
- USB and TV dockside connection
- Two (2) galvanic isolators
- Main DC and AC breaker panel, circuits protected by reset-able circuit breakers
- Vessel wide Systems monitoring by Simon or equal with limited points
- Auto parallel function
- Changeover protection for generators
- Remote battery switches controlled from locker in cockpit
- 24V 80amp battery chargers
- 12V 40amp battery chargers
- Battery coupling system
- Battery bank for engine starting
- Battery bank for general service and emergency
- Battery bank for generator starting
- Two (2) 50 gallon water heaters
- Engine bay and bilge lights engine room blowers AS (60cm – 2ft diameter)
SYSTEMS
- Power steering hydraulic (one pump from each engine)
- Emergency steering system
- Headhunter or Techma toilet system
- Black holding tank/MSD by Headhunter Systems with dockside pump-out, 24V macerator overboard pump-out and level indicator
- Aluminum or integral water tanks with electric sending units 2272L (600 Gal) each
- Fresh water pressure system
- Two (2) TBD stainless steel lined hot water tanks
- One (1) water maker– 1,600gallons/day
- Chilled water reverse cycle air conditioning/heating system by Cruise Air with tonnage TBD by loads
- Oily water separator
- Fuel centrifuge
- Navigation, communication & audio-visual equipment by allowance
GENERATORS
- Two (2) 65 KVA 1800 rpm, 60 Hz generators with sound shields
- Water separating/silences
- Remote starting
- Generators have own 24V batteries
- Verna-Lift type muffler system with wet and dry exhaust separation
FIRE, VENTILATION AND INSULATION
- Full vessel sound dampening system
- Isolation mounts for machinery
- Isolation & decoupling program for accommodations
- Delta-T engine room air blowers, demisters & emergency fire flaps
- Fixed fire extinguishing system for engine room & utility spaces
- Individual fire extinguishers located in each cabin
- Air conditioner, make up and extraction system to vendor recommendations
- Fire detection and alarm as per class
- Insulation to consultants' recommendations
SPORT DECK
- Access stairs to aft deck P&S
- Twin stern cleats in stainless steel
- Safety lighting
- Wing storage w/ dive gear storage racks
- Teak planked, two level swim step deck
- Box-in shower fixture
- Stainless steel loop style handrails 50mm
- Watertight pantograph door to Laz.
- Electro-Hydraulic stern Passerelle
- Shore power connections for AC & conditioning system, stbd. wing
- TV/USB connection
- Dockside water connection
- Rudder locker & fender storage hatch
- Bathing ladder
MAIN AND AFT DECKS
- Two (2) 11,000 vertical hydraulic anchor windlass
- Chain stopper, devil's claw & tensioner to suit chain, all per class
- Two (2) 325kg high holding power, polished stainless steel anchors
- Two (2) lengths of galvanized U2 stud link chain, 20mm 1x 135m 1x 200m w/superbox swivels
- Fortress FX125 stern anchor w/ 20m of 18mm chain & 90m of 25mm braided nylon
- Five (5) pairs of stainless steel hawsers
- Five (5) pairs of stainless steel bitts
- Aft capstans (2) 3500 lbs capacity
- Twin swim platform pop-up cleats in stainless steel
- Teak cap rail around bow and along side decks, across aft deck
- Concealed fuel filler locker side decks P&S
- Water fillers, port and starboard
- Built in aft seating with custom teak table having stainless steel bases
- Bar with solid surfacing top , misc. storage, buffet across front wall, under-counter refrigerator/ice maker
- Two (2) stools with stainless steel bases and izit-leather cushion covers
- Stainless steel sink and faucet set
- Misc. rail systems of stainless steel and teak caps
- Powered sliding door into Salon
- Stairs to Sun Deck above
- Air trunks P&S with Delta-T fans within
- Air trunk storage locker stbd. side
- Air trunk E.R. escape port side via water tight door with 16" threshold per class
- Polished stainless steel compression posts P&S
- Patterned overhead slick finished
- Teak Decking on aft deck and side decks including all stairs
SUN DECK
- Bar and buffet areas outboard P&S with solid surfacing tops
- Engine room air boxes with demisters
- Polished stainless steel compression posts
- Teak planked, pattern per designer
- Pattern slick finished overhead panels
- Stainless steel bar sink & faucet set
- Recessed lounge zone across back with rails and glass wall insert panels
- Icemaker & refrigerator
- Twenty (20) life jackets in overhead, drop-down panel box
- Flush stainless steel screw eyes installed in deck to hold down furniture during heavy passage making
- Stairwells up and down with teak treads on all plus stainless steel rails per designer details
- Electric polished, stainless steel sliding doors into Sky Lounge
- Custom flag staff aft and stern light
- Stern docking lights mounted to underside of deck aft
FLYBRIDGE AND TENDER DECK
- Wet bar to enclose sink, refrigerator, icemaker, and solid surfaced top
- Wrap around settee lounges P&S w/ storage within & "Sunbrella" cushions & canvas covers
- Half-moon dinette with built in storage within & "Sunbrella" cushions & canvas cover
- Dinette table of solid surfacing with stainless steel legs
- Stainless steel gas grill set on center island aft with two stools behind on stainless steel pedestals
- Hot tub fwd. with overflow drain edge
- Built-in fwd. riding seats w/ storage under P&S
- Stainless steel sink & sink faucet set
- Two (2) teak tables, fixed with stainless steel bases
- Enclosed storage boxes P&S for cushions
- Custom arch and mast assembly with hard top having retractable opening; all per designer details
- Air horns
- IMCO navigation lights
- Pair of search lights
- Mast with nav/ coms equipment mounts
- One 17' tender ( owner supplied)
- Removable support cradles for tender
- One (1) electro-hydraulic crane by Nautical Structures or equal.
- Power swing and lift with fast deployment feature and down light within boom tip
- Flush stainless steel screw eyes installed in deck to hold down tenders during heavy passage making
- Deck flood lights in aft edge of hardtop
PILOT DECK AND BOW
- Docking stations, port & starboard
- Watertight door from pilot house to side decks P& S
- Three (3) pantograph wipers, 24V, with windscreen washers
- Full walk around to bow deck with windscreen
- Patterned overhead with slick finish
- Varnished teak cap rail
- Teak decking walk around and centerline companionway to bow deck
- Windlass island with integral spurling tubes and drain basin.
- Fresh water wash down on windlass and additional deck spigot
- Centerline chain locker access & Ladder
- Port & Stbd. deck locker accesses with water-tight doors base of steps
- Custom bow flag staff
- Non-skid bow deck finish
- Centerline step/seat base
- Freeing ports P&S, bitts & hawsers
INTERIOR FURNISHINGS
- Woodwork will generally be Mahogany as Makore or Sapele in veneer and solid stock.
- Horizontal surfaces will be veneers of straight grain and selected burls in limited areas as defined by the Designer
- Hardwood accents will be used throughout
- The high quality joinery will be satin finished and the fittings are of the highest quality by Izerwaren or equal
CREW LOUNGE
- L-shaped settee, vinyl padded upholstery on Formica covered base w/ drawers and drop-in storage under
- Corian tabletops on aluminum pedestals
- Cabinets outboard for shelves and storage
- Corian ledge surrounding banquet seating
- Cabinets inboard for TV and with minimal book and DVD storage
- Stairs to main deck galley
- Amtico simulated wood, Vinyl flooring
- Overlay Formica walls
- Overhead vinyl covered panels or Whisper Wall system
- Corian countertop w/ 100mm backsplash
- Full size Sub-Zero refrigerator/freezer/ice
- Stainless steel sink and faucet
- Two (2) burner cooktop
- Microwave oven
- 30" TV/DVD, radio and overhead speakers
- AMS LCD screen
- CCTV LCD screen
- USB
- Overheads, reading lights, courtesy lights
- Two (2) portlights w/ deadlight covers & window treatments
- Paper towel holder
- Trash receptacle
- 30" x 40" hatch to hold below
- Full size stacked washer/dryer unit with linen storage across hallway
CAPTAIN'S CABIN
- Double size berth w/ custom headboard of wood & upholstery
- Hanging locker lined w/ cedar
- Drawers below berth & under hanging locker
- Desk w/drawers on aft wall, overhead cabinets projecting outbd. over berth
- Shelving outboard of berth built into hull side panels w/ cubbies below
- Portlights w/ deadlight covers
- Carpet flooring w/ acoustic pad
- Veneer and hard finish coated desktop
- USB jack
- 17" flat panel TV/DVD combo
- Ships system monitor LCD screen
- Reading lamp, overhead lights, under cabinet light over desk,
- Closet light w/auto switch
- Safe under mattress at head of bed
- Trash receptacle
- Two (2) life vests
- One (1) fire extinguisher
CAPTAIN'S HEAD
- Formica overlay vanity cabinet w/ Mahogany trim, doors and drawers
- Corian or equal single bowl sink, top and backsplashes
- Medicine cabinet w/ sliding mirrored doors
- Fiberglass shower pan w/ seat and shelf & Corian walls
- Linen cabinet forward
- Amtico simulated woood Vinyl flooring
- Overlay Formica walls
- Towel bar, toilet paper holder, Toothbrush/cup holder, soap dish
- Overhead, shower & mirror lights
- Kohler faucet set, showerhead, hand sprayer and shower controls
- Short bowl toilet
- Custom tempered glass shower door and enclosure
- Extractor fan
- Air conditioning supply outlet
- GFCI AC socket
- Trash receptacle
CREW CABINS (2)
- Single bunks in two (2) cabins
- Drawers under berths
- Shelves or cubbies outboard of berths
- Hanging lockers lined w/ cedar plus full length mirror inside door
- Dresser w/ multiple drawers
- Carpet flooring w/ acoustic pad
- Cabinetry and walls throughout crew of overlay Formica w/ Mahogany trim
- Vinyl covered padded panels in 6" strips outboard of berths
- Stretched vinyl, removable paneled ceiling
- Overhead lights, bunk lights, closet light w/ auto switch in hanging lockers, & under cabinet lighting
- Portlights w/ deadlight covers
- Air conditioning and heating
- AC sockets
- Two (2) life vests in each cabin
- One (1) fire extinguisher per cabin
CREW HEADS (2)
- Formica overlay vanity cabinet w/ Mahogany trim, doors and drawers
- Corian or equal single bowl sink, top and backsplashes
- Medicine cabinet w/ sliding mirrored doors
- Fiberglass shower pan w/ seat and shelf & Corian walls
- Linen cabinets fwd.
- Amtico simulated wood, Vinyl flooring
- Overlay Formica walls
- Towel bar, toilet paper holder, Toothbrush/cup holder, soap dish
- Overhead, shower & mirror lights
- Kohler faucet set, showerhead, hand sprayer and shower controls
- Short bowl toilet
- Custom tempered glass shower door and enclosure
- Extractor fan
- Air conditioning supply outlet
- GFCI AC socket
- Trash receptacle
GUEST STATEROOMS 1 & 2 FWD (Mirror-imaged duplicates)
- Single beds w/ drawers under
- One (1) bedside table w/ three (3) drawers
- Aromatic cedar lined hanging lockers w/ drawers below & mirrors inside of doors
- Fabric covered padded headboards
- TV flush fit in aft wall
- Soffet over outboard bed for HVAC
- Carpet flooring w/ acoustic pad
- Vinyl wrapped wall panels above chair rail with veneer and solid stock trimmed walls below to baseboard
- Wood veneer doors with solid stock frames and jambs
- Overhead vinyl covered panels
- Overhead lights, wall lamps, closet light w/ auto switch in hanging lockers, rope lights
- Wood Venetian blinds 30mm slats
- Outboard V-grooved horizontal plank-look plywood or equal, painted finish
- Roman shades w/ room darkening inner linings
- 24" flat panel TV
- I-pod dock and twin overhead speakers
- USB jack
- Two (2) portlights w/ deadlight covers
- Trash receptacle
- Two (2) life vests in each room
- One (1) fire extinguisher in each room
- Flush wall fit upper Pullman berths inboard
GUEST HEAD(S) 1 & 2
- Single sink vanity w/ marble slab w/ fiddle edge top, Mahogany base w/ drawers & shelves within
- Mirror above medicine cabinet outboard
- Fiberglass shower module lined w/ ceramic tile walls and marble base
- Patterned marble tile flooring
- V-grooved horizontal plank-look plywood wall covering outboard painted finish,
- Overhead vinyl covered panels
- Towel bars, toilet paper holder, toothbrush/cup holder, soap dish & holder
- Overhead, rope lights in toe kick, vanity & waterproof shower light
- Faucet set, showerhead, hand sprayer & shower controls
- Long Bowl toilet
- Extraction fan
- Custom tempered glass shower door & enclosure
- Kohler undermount ceramic sink
- Trash receptacle
GUEST STATEROOMS 3 & 4 FWD (Mirror-imaged duplicates)
- Queen sized beds w/ drawers under
- Two (2) bedside tables w/ one (1) drawer and open shelving under
- Aromatic cedar lined hanging lockers w/ drawers below & mirrors inside of doors
- Fabric covered padded headboards
- Built-in dresser cabinets inbd.
- Desk cabinetry inboard w/ storage drawers as a dresser
- Flat panel TV built-in above desk top
- Soffet over bed and nightstands
- Carpet flooring w/ acoustic pad
- Outboard V-grooved horizontal plank-look plywood or equal, painted finish
- Vinyl wrapped wall panels
- Wood veneer doors with solid trim and jambs
- Timber skirting, ceiling negative detail and architraves
- Overhead vinyl covered panels
- Overhead lights, wall lamps, closet light w/ auto switch in hanging lockers & rope lights
- Innerspring mattresses, typical queen size
- Wood Venetian blinds 30mm slats
- Roman shades w/ room darkening inner lining
- 24" flat panel style TV
- I-pod dock and twin overhead speakers
- USB jack
- Two (2) portlights w/ deadlight covers
- Trash receptacle
- Two (2) life vests in each room
- One (1) fire extinguisher in each room
- Escape hatch to side deck above
GUEST HEAD 3 & 4
- Single sink vanity w/ marble slab w/ fiddle edge top, Mahogany base w/ drawers & shelves within
- Mirror above, medicine cabinet aft w/ linen closet
- Fiberglass shower module lined with stone tile walls and base, w/ seat
- Patterned marble tile floor
- Outboard V-grooved horizontal plank-look plywood or equal, painted finish,
- Overhead vinyl covered panels
- Heated towel rail
- Vanity Top/Backsplash: Marble slab w/ fiddle edge w/ 100mm backsplash on two (2) sides
- Towel bars, toilet paper holder, toothbrush/cup holder, soap dish & holder
- Overhead, vanity, & rope lights; waterproof shower light
- Showerhead, hand sprayer and shower controls, faucet sets
- Long bowl toilet
- Custom tempered glass shower door and enclosure
- Kohler under mount ceramic sink
- Extraction fan
- Trash receptacle
LOWER FOYER
- Stair to upper foyer, carpet runner to expose wood steps
- Custom wood rails, posts & ballaster
- Built-in linen cabinets and buffet/art display cabinet with stone top
- Storage under stairs
- Raised soffet feature centered in foyer w/ domed punch-up
- Hatch to central bilge
- Patterned marble flooring
- Vinyl covered panel walls, wood veneer panels below chair rail height plus decorative columns
- Overhead vinyl covered panels & faux painted punch-up soffet area
- Overhead & accent lighting, stair lights, rope lights within soffet
- Fire extinguisher
- Full size stacking washer and dryer
- Luggage locker under forward stairs
ENGINEER'S CABIN
- Single bunk
- Drawers under berths
- Shelves outboard of berth, w/ cubbies
- Hanging locker lined w/ Formica full length mirror inside door
- Dresser w/ multiple drawers
- Carpet flooring w/ pad
- Cabinetry and walls of overlay Formica plywood w/ Mahogany trim
- Vinyl covered padded panels in 6" strips outboard of berths
- Stretched vinyl, removable paneled ceiling
- USB
- 13" DVD/TV combo unit
- AMS LCD screen
- Overhead lights, bunk lights, closet light w/ auto switch in hanging lockers, & under cabinet lighting
- Portlight w/ deadlight covers and window treatment
- Air conditioning and heating
- AC socket
- Trash receptacle
- Two (2) life vests in each cabin
- One (1) fire extinguisher
ENGINEER'S HEAD
- Formica overlay vanity cabinet w/ Mahogany trim, doors and drawers
- Corian or equal single bowl sink, top and backsplashes
- Medicine cabinet w/ sliding mirrored doors
- Fiberglass shower pan w/ Corian walls
- Vinyl flooring
- Overlay Formica walls
- Towel bar, toilet paper holder, Toothbrush/cup holder, soap dish
- Overhead, shower & mirror lights
- Kohler faucet set, showerhead, hand sprayer and shower controls
- Short bowl toilet
- Custom tempered glass shower door and enclosure
- Extractor fan
- Air conditioning supply outlet
- GFCI AC socket
- Trash receptacle
MASTER STATEROOM
- Entertainment center for flat panel TV
- Dressers P&S with drawers below
- Cedar lined hanging lockers & high/low rods & shelving
- Two (2) bedside tables w/ three (3) drawers
- Fabric covered, padded headboard w/ solid wood trim
- King size mattress platform for 1800 mm wide bed w/ drawers below
- Soffet above bed & nightstands
- Vanity/Desk area to stbd.
- Carpet flooring w/ acoustic pad
- Wrapped fabric wall panels
- Overhead vinyl covered panels
- Columns either side of bed & around hanging lockers
- TV, DVD, stereo w/ speakers in stateroom & head plus I-pad docks P&S of bed
- USB jacks (2)
- Overhead and accent lighting, closet light w/ auto switch in hanging lockers
- Electric Wood Venetian blinds with 30mm slats
- Electric Roman shades w/ room darkening inner linings
- Soffets above outboard dresser, sofa areas and over bed and nightstands
- Mirror behind select hanging locker doors
- Safe installed in one hanging locker
- Trash receptacle
- Window covers of aluminum per code
- Three (3) life vests
- One (1) fire extinguisher
MASTER HEAD
- Single sink vanity w/ marble slab w/ fiddle edge top, 100mm backsplash, mahogany base w/drawers & shelves within in each of two heads
- Storage locker for linens
- Mirrored doors on medicine cabinet
- Custom patterned marble tile shower walls, marble base w/ shelves & seat
- Americh tub w/ patterned marble tile surround
- Long bowl toilets
- Patterned marble tile flooring
- Overhead vinyl covered panels
- Towel bars, toilet paper holder
- Toothbrush/cup holder, soap dish
- Custom tempered glass shower enclosure w/ door
- Two (2) Kohler under-mount china bowl sinks
- Faucet sets, shower & tub heads, hand sprayers & shower controls
- Window treatments
- Mirrors
- Soffet above basin cabinets & tub
- Heated towel rails
- Trash receptacle
GALLEY
- Wood upper & lower cabinets
- Built-in storage and racking throughout
- L-shaped island w/ cooktops, bar height countertop
- Amtico type Vinyl floor
- Veneer walls
- Painted Sintra board or vinyl overheads
- Granite countertop and backsplash
- Overhead lights, under cabinet lighting & accent lighting
- Three (3) 3/4hp garbage disposals
- Two Franke main sinks w/ soap dish dispenser & one vegetable sink
- Two (2) sink faucet sets w/ integral sprayers
- One (1) Gaggenau or Meile four (4) burner cooktop w/ two (2) burner grill
- Two (2) Gaggenau or Meile 30" wide ovens & one (1) warming oven
- One (1) Sub-Zero refrigerator stainless steel finish
- One (1) Sub-Zero freezer stainless steel finish
- One (1) undercount icemaker at entry
- Convection Microwave
- Pantry with shelving systems
- Entry door to side deck
- Two (2) dishwashers
- One (1) trash compactor
- One (1) icemaker
- Oversized Gaggenau or Vent-A-Hood stainless steel hood
- Miele CVA615 coffee maker
- Two (2) trash receptacles
- Paper towel holders
- One (1) fire extinguisher
MAIN FOYER
- Full height windowed door port and starboard
- Closed risers stairs down to Lower Deck
- Closed risers stairs up to Pilot Deck
- Wood open riser step treads w/ carpet runner & pad up to Sky Lounge
- Custom railing system and glass panels or classic spindle
- Patterned marble tile flooring
- Veneer paneled walls w/ decorative columns
- Vinyl overhead panels with feature punch up area with surround moldings
- Overhead, tread lighting, rope lights within punch-ups & accent lighting
- Timber skirting, architrave and doors
FOYER DAY HEAD
- Vanity base for single sink w/ storage below & marble top w/fiddle edge & 100 mm backsplash
- Marble flooring
- Vinyl covered overheads
- Overhead & vanity lighting
- Specialty sink & faucet set
- Long Bowl toilet
- Mirror
- Toilet brush & holder
- Towel bar, toilet paper holder & soap dish
- Trash receptacle
SALON
- Credenza type hide away bar to Stbd.
- Divider buffet to dining room with 42" flat screen TV on electric lift mechanism
- Misc. side table cabinets
- Carpet flooring w/acoustic pad
- Veneer and solid trim wall panels plus padded panels on air trunk fascias
- Recessed ceiling over seating area
- Punch downs outboard for A/C discharges
- Overhead & accent lighting
- Wood Venetian blinds with 30mm slats
- Roman shades
DINING
- Dining buffets outbd. w/ customized drawers and enclosed cabinets for china, linen & flatware
- Glass/wine storage within buffets
- Built in buffet/art nook fwd.
- Archway to foyer with double doors
- Carpet flooring w/acoustic pad
- Veneer and solid trim wall panels
- Recessed over dining table w/ faux finish
- Punch downs over all buffets & capturing columns for A/C discharges
- Overhead & accent lighting
- Wood venetian blinds with 30mm slats
- Roman shades
- All wood veneer & solid stock, raised panel door & drawers w/ Mahogany top cabinets
PILOTHOUSE
- Solid wood banquet seating base w/ upholstered cushions & footrest, surrounded w/ wood veneer ledge, storage P&S
- Polished stainless steel table pedestals w/ custom solid wood top w/ fiddle edge
- Navigation desk w/ wood veneer top w/ fiddle edge, drawers & upper cabinet
- Chart drawers, P&S forward
- Signal flag locker
- Navigation console, face to be veneer, tops & slopes to be padded panels
- Ship's file cabinets
- Electric panel lockers & medical supply lockers
- Varnished Teak and Maple flooring
- Wood veneer wall panels, vinyl padded panels around forward window mullions
- Recessed overhead above console, vinyl overhead panels
- Overhead, under cabinet & accent lighting,
- Decorative stainless steel and/or hardwood columns
- Fire extinguisher
- Navigation electronics
- Banquet and leaning post upholstery fabric (leather or synthetic leather)
- Twin Stidd chairs
- Steering station and controls
- CCTV monitor
- AMS LCD `screen
- Coms, nav and entertainment electronics
- Trash receptacle
SKYLOUNGE
- Wood bookshelves w/ cabinet below, aft Stbd. corner.
- TV cabinet central with pop up 42" TV on swivel base for 180 degree spin.
- Stereo & DVD player plus movie storage
- Cabinet & window ledge outboard, starboard side, with storage shelving
- Carpet flooring w/ acoustic pad
- Vinyl padded overhead panels
- Recessed vinyl panels in central punch up area
- Overhead, bookshelf, accent & soffet lighting
- Soffits outbd. above windows for HVAC
- Wood Venetian blinds with 30mm slats
- Roman shades w/ darkening lining
- Trash receptacle
DAY HEAD
- Vanity base for single sink w/ storage below & marble top w/fiddle edge & 100 mm backsplash
- Teak & Maple varnished flooring
- Vinyl covered overheads
- Overhead & vanity lighting
- Specialty sink & faucet set
- Long Bowl toilet
- Mirror
- Toilet brush & holder
- Towel bar, toilet paper holder & soap dish
- Trash receptacle
- Eight (8) 20" x 48" Polyform F-series black fenders
- Sixteen (16) 15' x ½" black fender lines
- Six (6) 1" x 50' double-braid nylon black dock lines
- Two (2) 1" x 80' double-braid nylon black dock lines
- Multiple Safeguard type I orange life vests for adults over 90 lbs per class regs with additional children's life vests
- Multiple Kiddie Mariner 2 ¾ lb M10 fire extinguishers per class regs.
- One (1) Bernard oil discharge placard (US Model Only)
- One (1) Bernard waste discharge placard (US Model Only)
- Two (2) Jim-Buoy 24" white ring buoys
- Four (4) Perko chrome/brass 4-ring buoy holders
- One (1) Orion alert/locate flare kit
- One (1) Orion circumnavigator first aid kit
- One (1) Orion safety blaster horn
- Fixed fire extinguishing system for engine room & utility spaces
- Individual fire extinguishers located in each cabin
- Fire detection and alarm as per class
Outer Reef Yachts
